DXF to DWG Workflow — Save As Step-by-Step Guide

Contractor sent DXF but your team needs DWG? Open the exchange file here, verify geometry, then export an AutoCAD-ready R2013 DXF open in AutoCAD and Save As .dwg in one step.

If you've ever gotten a DWG from the engineer and your next step only accepts DXF, you know the drill: find someone with AutoCAD, export, hope the layers survived, email it back. It eats an afternoon for a five-minute task.

This page walks through how we handle DXF to DWG converter in the browser what works, what doesn't, and when you'd still want desktop CAD.

DWG is what AutoCAD saves natively. DXF is the text-based exchange format almost everything else claims to read. Fire alarm panel programming tools, old estimating packages, some BIM imports plenty of them want DXF and nothing else.

The annoying part isn't the conversion itself. It's making sure layers, blocks, and tags come along. A bad export strips block inserts or drops text styles, and then your device count is wrong before you even start.

CadPeek reads the DWG in your browser and writes ASCII DXF from the same database you see on screen. For most 2D sprinkler and alarm plans that's enough for Revit link prep or vendor import.

Writing binary DWG back from a browser isn't really a thing yet. If you need native DWG out of a DXF, open our R2013 export in desktop AutoCAD and Save As that's the same path a lot of online converters use under the hood.

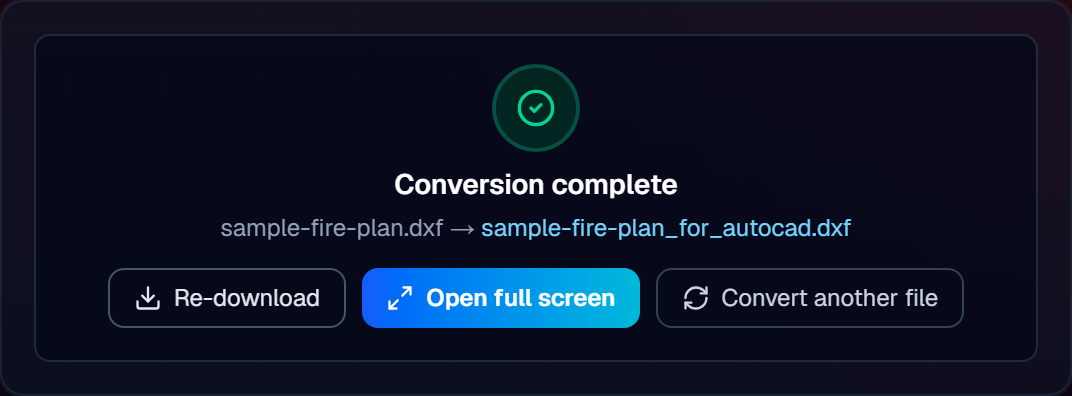

True binary DWG encoding requires desktop AutoCAD or ODA. CadPeek opens your DXF locally, lets you verify layers and text, then exports a normalized R2013 DXF that AutoCAD opens cleanly use File Save As DWG for the native file.

Foreman on site gets Rev 3 on a phone and needs to confirm head count on Level 2 before Monday's walkthrough open the DWG, run DXF to DWG converter, no trip back to the trailer PC with the only AutoCAD license.

Owner rep during tenant improvement doesn't own CAD but needs to see alarm device layout share link or walk them through the viewer in a meeting.

BIM coordinator gets consultant DWG Friday at 4pm; Revit import is Monday. Validate or convert over the weekend in the browser instead of waiting for IT to install TrueView.

Commissioning agent building a tag list for sign-off extract text once, filter in Excel, attach to the report.

Plan reviewer comparing two revisions side by side same tool, two browser tabs, or export between steps if your process requires saved files.

We usually run conversion on the file as received no cleanup first. If the target system chokes, then isolate fire layers, export again, and see if a bloated xref layer was the culprit.

Naming matters when you batch-convert for a vendor: include sheet number and revision in the filename. "B2-SPRINKLER-R3.dxf" saves a round of email.

ASCII DXF opens in Notepad if you're desperate. Handy once when a single bad entity line was crashing an import we could see which layer it lived on.

The tool page has a live workspace at the top same engine as the full viewer. Upload there or use Upload DWG in the header if you want the whole screen.

Free launch limit is 15 MB per file. That's most single-floor fire plans. Campus packs may need to be split by sheet annoying, but still faster than shipping drives.

Confirm the attachment opens corrupt zips and truncated downloads happen on mobile hotspots.

Note the AutoCAD version if the inspector asks; file inspector shows it without opening desktop software.

If xref paths are broken, you may see empty sheets until the sender binds xrefs. Browser viewers can't fix missing xref files on your machine.

For DXF to DWG converter, work on a copy if your contract requires preserving the received file byte-for-byte in the project folder.

After you're done, archive what you exported (DXF, Excel, report text) next to the share link URL in your project log. Future you will forget which link was which.

If the GC asks "can you send that again?" you already know which revision you processed your filename discipline pays off here.

When in doubt, call the engineer before you re-export. Five minutes on the phone beats a wrong file in the record set.

Tianzheng and some plugin DWGs open partial in any web viewer, not just ours. If the sheet looks empty or blocks won't explode, ask for standard DWG/DXF from AutoCAD we've seen that more on imports from overseas consultants than domestic shops.

Always check units before measuring. We've seen metric files opened with feet assumed and spacing "violations" that were just a units mistake.

Keep the sender's original filename when you export. "ProjectX_from_MEP_rev2.dxf" beats "download(1).dxf" when the engineer calls back asking which file you used.

Custom objects may flatten to lines and arcs on export. Most fire plans are 2D lines, blocks, and text that's fine. Weird MEP solids might not convert cleanly.

Sharing is upload-by-choice. If the drawing is sensitive, review locally and only share redacted sheets or specific floors.

Yes, if you're editing geometry moving heads, rerouting pipe, updating the model. No, if you're reviewing, converting, counting, measuring, or sending a link to someone who will never edit.

Autodesk's web viewer needs an account and uploads to their cloud. DWG TrueView is free but Windows-only and a chunky install. CadPeek is aimed at fire plan review: layer filters, block counts, text export, measure without a monthly seat for every person who touches the drawing.

Lots of shops keep a few AutoCAD licenses for production and use browser tools for everyone else in the chain.

Why not download .dwg directly?

Binary DWG write is not available in browser engines. The export is an AutoCAD-compatible R2013 DXF the standard path to native DWG without a desktop converter.

Contractor sent DXF but your team needs DWG? Open the exchange file here, verify geometry, then export an AutoCAD-ready R2013 DXF open in AutoCAD and Save As .dwg in one step.

Open the DXF to DWG Converter tool page, drop in your DWG or DXF, and run it. If the file won't open cleanly, try the file inspector or DXF validator first saves time versus debugging a bad attachment downstream.

Bookmark the page if you get repeat work from the same GC or engineer. The related tools in the sidebar cover layer audit, text export, and share links when this job turns into the next one.

Standard US sprinkler and alarm sheets from mainstream consultants usually open fine. Weird plugin files are the exception and those are painful in desktop CAD too.
