How to Batch Rename CAD Layers Before Submittal

Standardize messy layer names before submittal replace FP- with FIRE-, fix discipline prefixes, or align with your BIM naming standard. Apply renames and export DXF.

Shop drawings pick up junk layers empty template layers, old xref names, prefixes from three different consultants. Cleaning that up before you send the package to the owner or AHJ saves everyone a headache.

Here's how we use batch rename CAD layers on real submittals, and a few things that still trip people up.

Empty layers clutter the list and confuse reviewers who aren't CAD-savvy. Hide them, filter to fire names, and the drawing reads cleaner in a screen share.

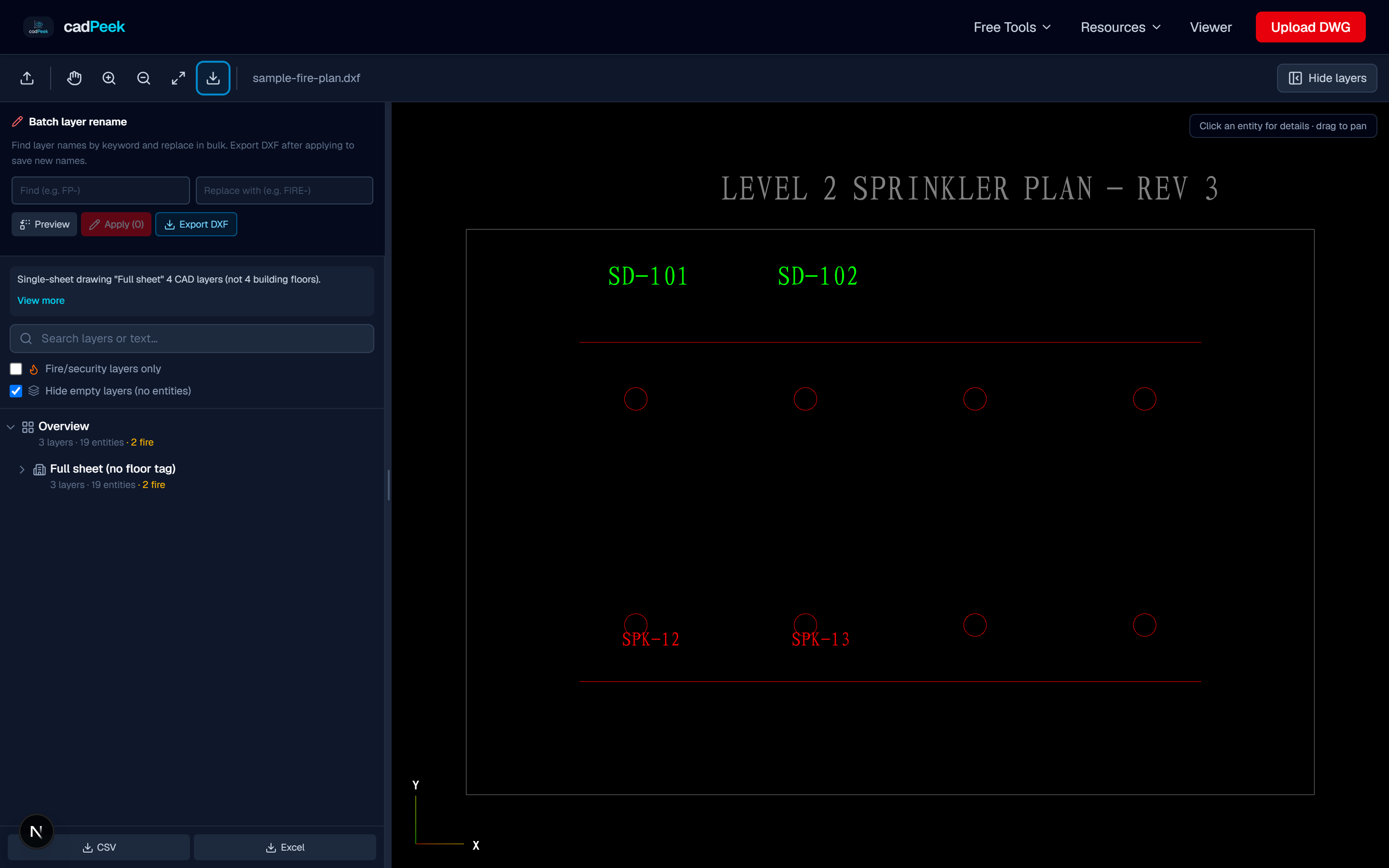

Batch rename is the other common job: the sub uses FP-SPRK- and your standard says FIRE-SPR-. Find/replace on layer names updates the table and every entity pointing at those layers, then export DXF with the new names baked in.

We still keep the original file untouched export to a new name so you can trace a problem back to what the engineer sent.

Shop drawings arrive with inconsistent layer prefixes from different consultants. Batch rename updates both the layer table and every entity reference, then export DXF to deliver the cleaned file.

Foreman on site gets Rev 3 on a phone and needs to confirm head count on Level 2 before Monday's walkthrough open the DWG, run batch rename CAD layers, no trip back to the trailer PC with the only AutoCAD license.

Owner rep during tenant improvement doesn't own CAD but needs to see alarm device layout share link or walk them through the viewer in a meeting.

BIM coordinator gets consultant DWG Friday at 4pm; Revit import is Monday. Validate or convert over the weekend in the browser instead of waiting for IT to install TrueView.

Commissioning agent building a tag list for sign-off extract text once, filter in Excel, attach to the report.

Plan reviewer comparing two revisions side by side same tool, two browser tabs, or export between steps if your process requires saved files.

Before rename, screenshot or PDF the layer list if the contract requires you to show what changed. Auditors occasionally ask.

Hiding arch layers in the viewer is reversible you're not deleting anything. Deletion still belongs in AutoCAD with the engineer's OK.

On merged models, filter fire keywords first, then hide the rest. Faster than toggling eighty layers one by one.

The tool page has a live workspace at the top same engine as the full viewer. Upload there or use Upload DWG in the header if you want the whole screen.

Free launch limit is 15 MB per file. That's most single-floor fire plans. Campus packs may need to be split by sheet annoying, but still faster than shipping drives.

Confirm the attachment opens corrupt zips and truncated downloads happen on mobile hotspots.

Note the AutoCAD version if the inspector asks; file inspector shows it without opening desktop software.

If xref paths are broken, you may see empty sheets until the sender binds xrefs. Browser viewers can't fix missing xref files on your machine.

For batch rename CAD layers, work on a copy if your contract requires preserving the received file byte-for-byte in the project folder.

After you're done, archive what you exported (DXF, Excel, report text) next to the share link URL in your project log. Future you will forget which link was which.

If the GC asks "can you send that again?" you already know which revision you processed your filename discipline pays off here.

When in doubt, call the engineer before you re-export. Five minutes on the phone beats a wrong file in the record set.

Tianzheng and some plugin DWGs open partial in any web viewer, not just ours. If the sheet looks empty or blocks won't explode, ask for standard DWG/DXF from AutoCAD we've seen that more on imports from overseas consultants than domestic shops.

Always check units before measuring. We've seen metric files opened with feet assumed and spacing "violations" that were just a units mistake.

Keep the sender's original filename when you export. "ProjectX_from_MEP_rev2.dxf" beats "download(1).dxf" when the engineer calls back asking which file you used.

Custom objects may flatten to lines and arcs on export. Most fire plans are 2D lines, blocks, and text that's fine. Weird MEP solids might not convert cleanly.

Sharing is upload-by-choice. If the drawing is sensitive, review locally and only share redacted sheets or specific floors.

Renaming layers mid-review confuses anyone still on Rev 2 note the change in the transmittal email so the engineer doesn't think devices moved.

Yes, if you're editing geometry moving heads, rerouting pipe, updating the model. No, if you're reviewing, converting, counting, measuring, or sending a link to someone who will never edit.

Autodesk's web viewer needs an account and uploads to their cloud. DWG TrueView is free but Windows-only and a chunky install. CadPeek is aimed at fire plan review: layer filters, block counts, text export, measure without a monthly seat for every person who touches the drawing.

Lots of shops keep a few AutoCAD licenses for production and use browser tools for everyone else in the chain.

Is batch rename CAD layers free right now?

Yes no account needed during launch. There's a per-file size cap; see the tool page for the current limit.

Standardize messy layer names before submittal replace FP- with FIRE-, fix discipline prefixes, or align with your BIM naming standard. Apply renames and export DXF.

Open the Batch CAD Layer Rename tool page, drop in your DWG or DXF, and run it. If the file won't open cleanly, try the file inspector or DXF validator first saves time versus debugging a bad attachment downstream.

Bookmark the page if you get repeat work from the same GC or engineer. The related tools in the sidebar cover layer audit, text export, and share links when this job turns into the next one.

Standard US sprinkler and alarm sheets from mainstream consultants usually open fine. Weird plugin files are the exception and those are painful in desktop CAD too.
