How to Measure Distances on a CAD Drawing in Your Browser

Click two points on the drawing for real-world distance — verify spacing, branch lengths, and travel paths in the field.

PDF prints lie a little. Not on purpose scaling, line weight, and paper size all introduce error. When you're checking head spacing or a branch run, measuring on the actual CAD file is the only way to trust the number.

This article covers measure CAD drawing online in CadPeek: units, common mistakes, and when to still pull out a tape on site.

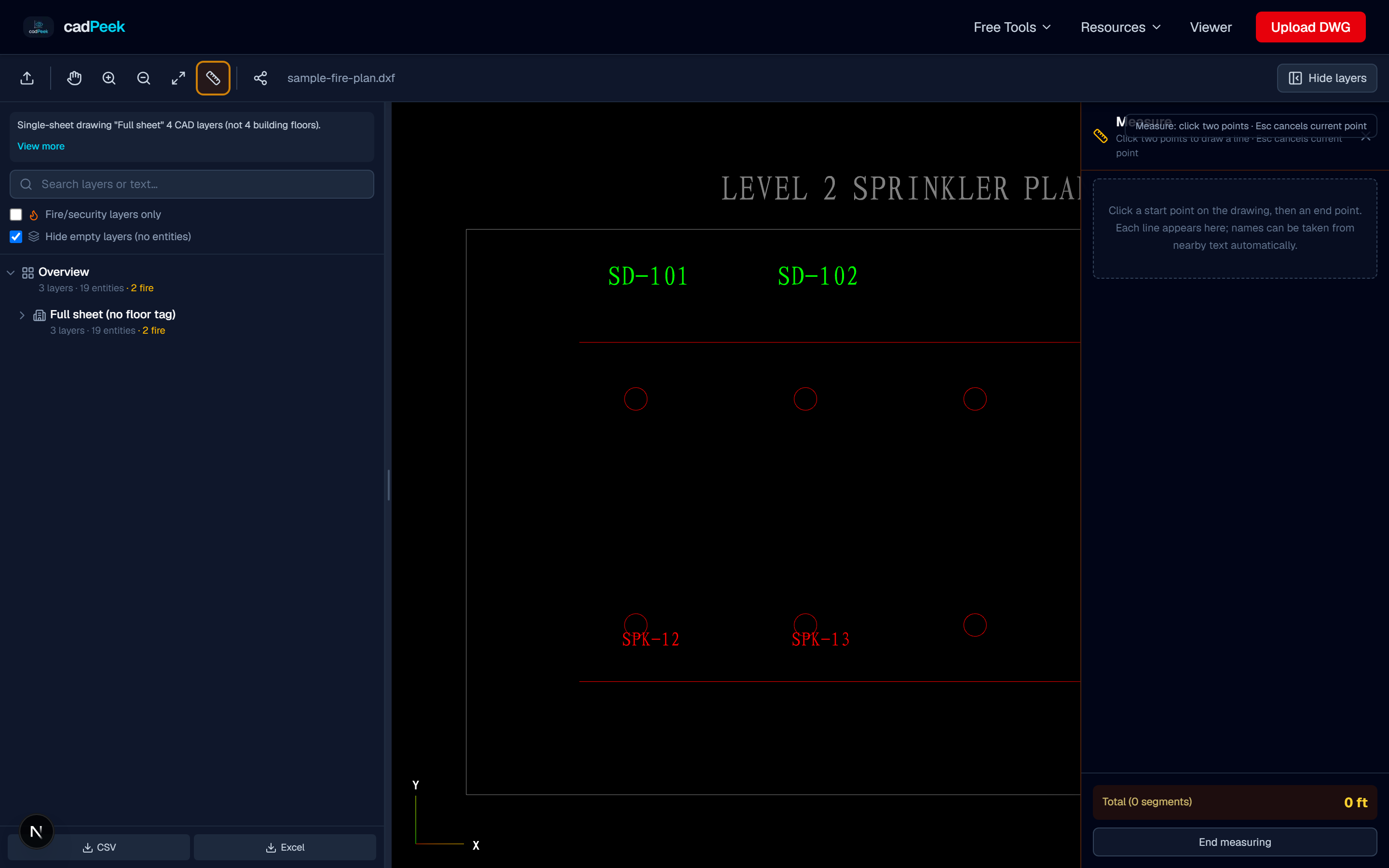

Pick two points on the live geometry. CadPeek uses the drawing's stored units usually feet or inches on US plans, sometimes millimeters on metric jobs. If a distance looks off by 10×, check units in the file inspector before you call the engineer.

NFPA spacing checks need real model distances, not scaled PDF guesses. Hide the arch layer, measure on the sprinkler layout, screenshot or share the link if the PM wants eyes on it.

Tablets on site work fine in Chrome or Safari. Just know that tiny picks on dense areas are easier with a mouse zoom in first.

Fitters and inspectors measure on the live CAD geometry instead of scaled PDF printouts.

Foreman on site gets Rev 3 on a phone and needs to confirm head count on Level 2 before Monday's walkthrough open the DWG, run measure CAD drawing online, no trip back to the trailer PC with the only AutoCAD license.

Owner rep during tenant improvement doesn't own CAD but needs to see alarm device layout share link or walk them through the viewer in a meeting.

BIM coordinator gets consultant DWG Friday at 4pm; Revit import is Monday. Validate or convert over the weekend in the browser instead of waiting for IT to install TrueView.

Commissioning agent building a tag list for sign-off extract text once, filter in Excel, attach to the report.

Plan reviewer comparing two revisions side by side same tool, two browser tabs, or export between steps if your process requires saved files.

Snap zoom helps on dense racks. Get tight on the two heads before you click fat finger picks on a tablet are real.

Compare measure to the spec sheet tolerance, not to your gut. ½ inch matters on some AHJ interpretations.

If the drawing says "NTS" or looks sketchy, measure anyway but note in your report that the sheet wasn't to scale in model space.

The tool page has a live workspace at the top same engine as the full viewer. Upload there or use Upload DWG in the header if you want the whole screen.

Free launch limit is 15 MB per file. That's most single-floor fire plans. Campus packs may need to be split by sheet annoying, but still faster than shipping drives.

Confirm the attachment opens corrupt zips and truncated downloads happen on mobile hotspots.

Note the AutoCAD version if the inspector asks; file inspector shows it without opening desktop software.

If xref paths are broken, you may see empty sheets until the sender binds xrefs. Browser viewers can't fix missing xref files on your machine.

For measure CAD drawing online, work on a copy if your contract requires preserving the received file byte-for-byte in the project folder.

After you're done, archive what you exported (DXF, Excel, report text) next to the share link URL in your project log. Future you will forget which link was which.

If the GC asks "can you send that again?" you already know which revision you processed your filename discipline pays off here.

When in doubt, call the engineer before you re-export. Five minutes on the phone beats a wrong file in the record set.

Tianzheng and some plugin DWGs open partial in any web viewer, not just ours. If the sheet looks empty or blocks won't explode, ask for standard DWG/DXF from AutoCAD we've seen that more on imports from overseas consultants than domestic shops.

Always check units before measuring. We've seen metric files opened with feet assumed and spacing "violations" that were just a units mistake.

Keep the sender's original filename when you export. "ProjectX_from_MEP_rev2.dxf" beats "download(1).dxf" when the engineer calls back asking which file you used.

Custom objects may flatten to lines and arcs on export. Most fire plans are 2D lines, blocks, and text that's fine. Weird MEP solids might not convert cleanly.

Sharing is upload-by-choice. If the drawing is sensitive, review locally and only share redacted sheets or specific floors.

Rotated view or UCS-heavy drawings can confuse picks if you're not zoomed in. Reset to plan view / WCS in your head before measuring.

Yes, if you're editing geometry moving heads, rerouting pipe, updating the model. No, if you're reviewing, converting, counting, measuring, or sending a link to someone who will never edit.

Autodesk's web viewer needs an account and uploads to their cloud. DWG TrueView is free but Windows-only and a chunky install. CadPeek is aimed at fire plan review: layer filters, block counts, text export, measure without a monthly seat for every person who touches the drawing.

Lots of shops keep a few AutoCAD licenses for production and use browser tools for everyone else in the chain.

Is measure CAD drawing online free right now?

Yes no account needed during launch. There's a per-file size cap; see the tool page for the current limit.

Click two points on the drawing for real-world distance — verify spacing, branch lengths, and travel paths in the field.

Open the Measure CAD Drawing Online tool page, drop in your DWG or DXF, and run it. If the file won't open cleanly, try the file inspector or DXF validator first saves time versus debugging a bad attachment downstream.

Bookmark the page if you get repeat work from the same GC or engineer. The related tools in the sidebar cover layer audit, text export, and share links when this job turns into the next one.

Standard US sprinkler and alarm sheets from mainstream consultants usually open fine. Weird plugin files are the exception and those are painful in desktop CAD too.
